Grafana Dashboard

A ready-to-use dashboard for Kyverno metrics.

Grafana Dashboard

Setup

With Helm Chart

  • If your Grafana is configured with the discovery sidecar, set grafana.enabled value to true.
  • If you’re using Grafana Operator, set grafana.enabled to true and grafana.grafanaDashboard.enabled value to true.

See more configuration options here.

Without Helm Chart

  • Download the dashboard’s JSON and save it in kyverno-dashboard.json
1curl -fsS https://raw.githubusercontent.com/kyverno/kyverno/main/charts/kyverno/charts/grafana/dashboard/kyverno-dashboard.json -o kyverno-dashboard.json
  • Open your Grafana portal and go to the option of importing a dashboard.

Dashboard step 1

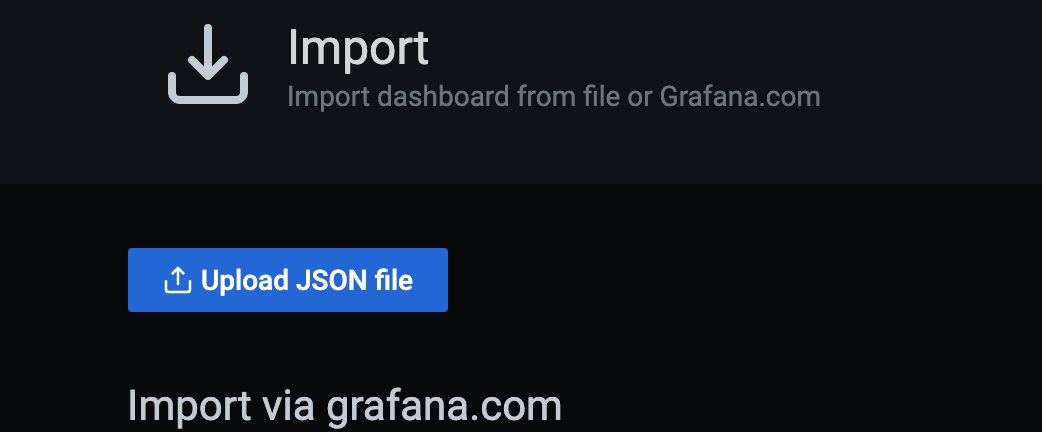

  • Go to the “Upload JSON file” button, select the kyverno-dashboard.json which you got in the first step and click on Import.

Dashboard step 2

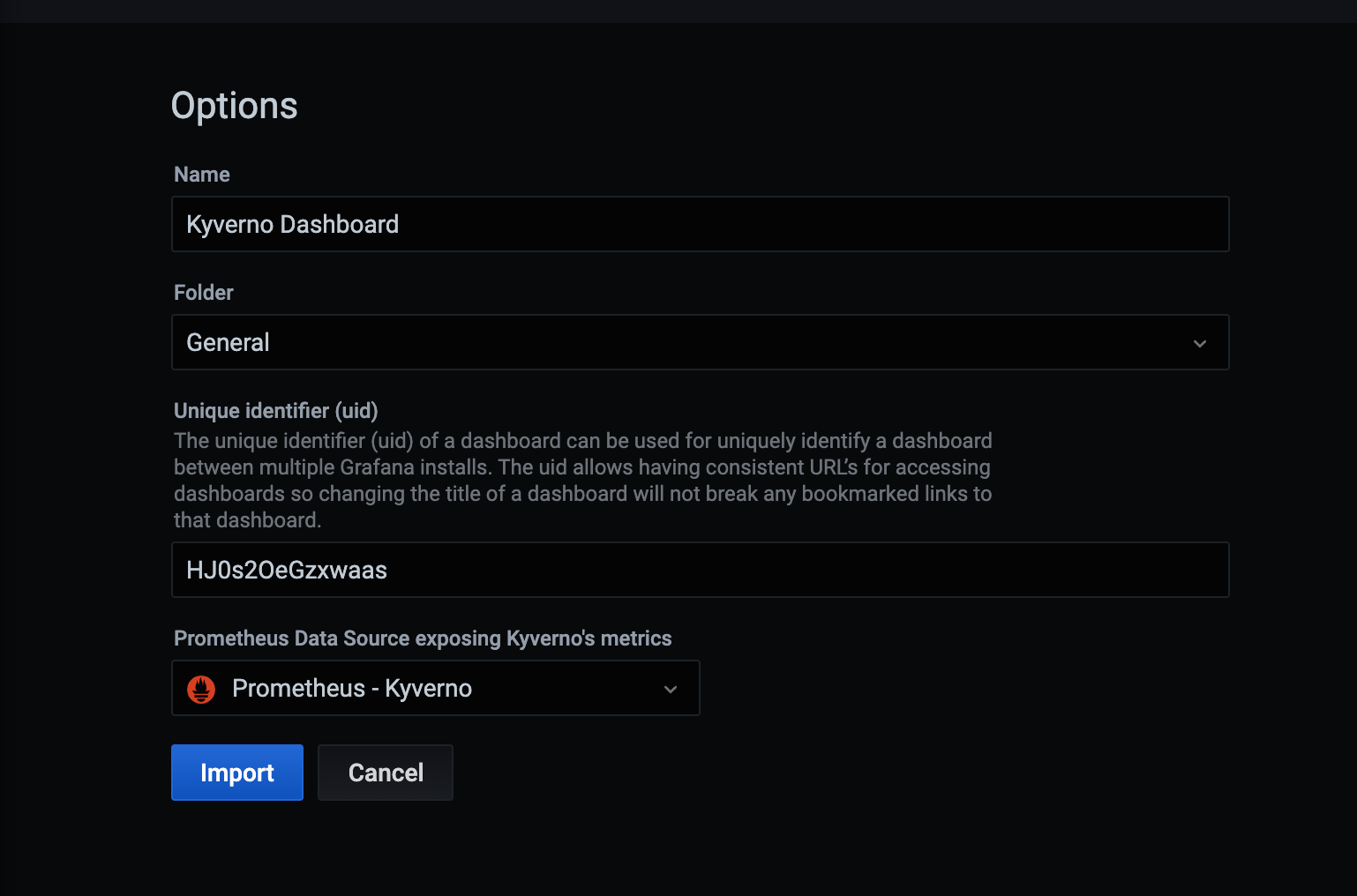

  • Configure the fields according to your preferences and click on Import.

Dashboard step 3

  • And your dashboard will be ready in front of you.

Dashboard example 1

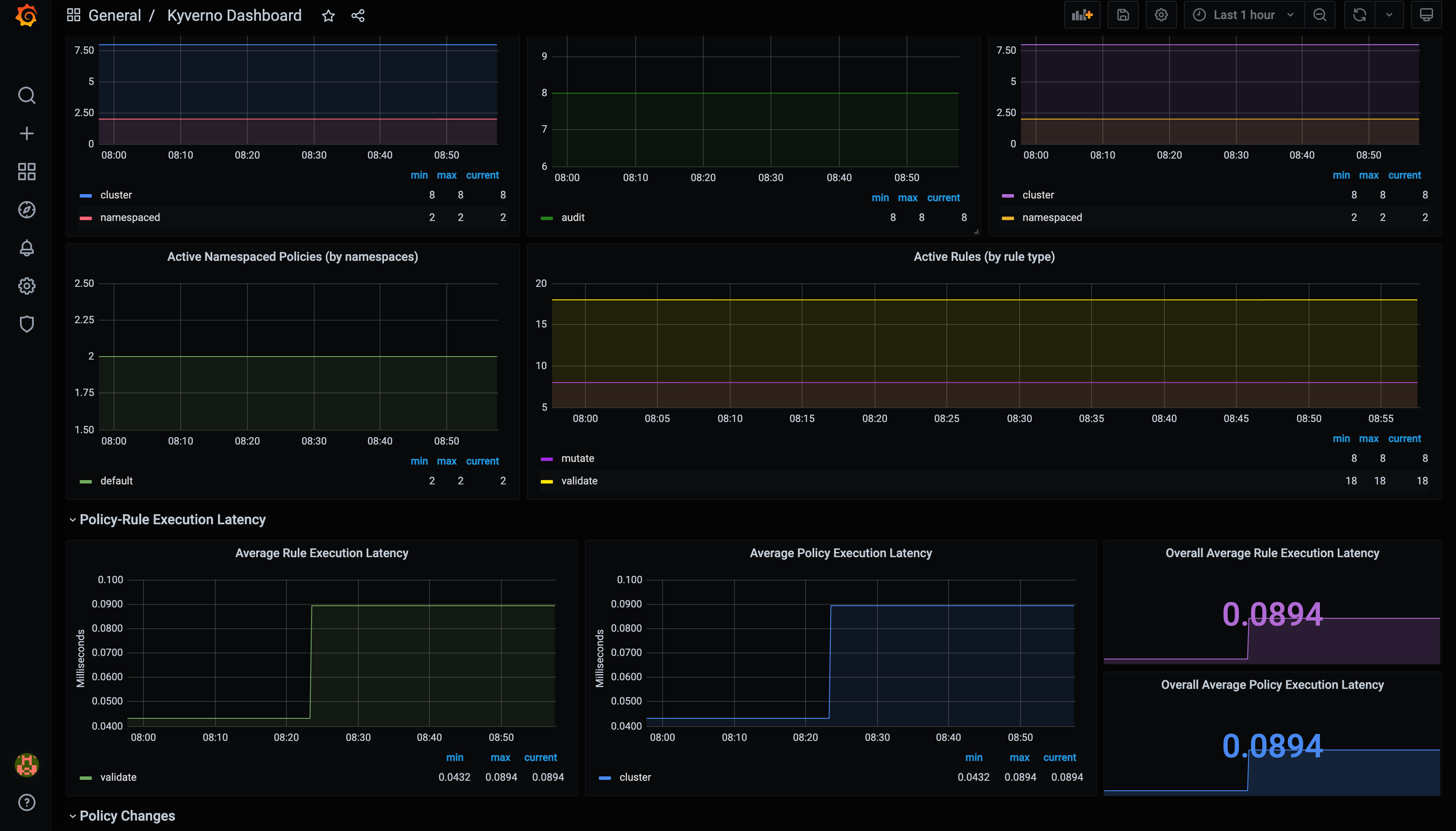

Dashboard example 2

Tutorial

1kind create cluster

Add Helm repositories.

1helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
2helm repo add kyverno https://kyverno.github.io/kyverno/

Update Helm repositories.

1helm repo update

Install Kyverno and the kube-prometheus-stack Helm chart.

1helm install kyverno kyverno/kyverno --namespace kyverno --create-namespace
2helm install monitoring prometheus-community/kube-prometheus-stack -n monitoring --create-namespace
3
4kubectl -n monitoring get po -l "release"

Create the ServiceMonitor resource.

Add the following contents to a file named service-monitor.yaml.

 1apiVersion: monitoring.coreos.com/v1
 2kind: ServiceMonitor
 3metadata:
 4  labels:
 5    app.kubernetes.io/instance: monitoring
 6    chart: kube-prometheus-stack-51.2.0
 7    heritage: Helm
 8    release: monitoring
 9  name: service-monitor-kyverno-service
10  namespace: monitoring
11spec:
12  endpoints:
13  - interval: 60s
14    path: /metrics
15    scheme: http
16    targetPort: 8000
17    tlsConfig:
18      insecureSkipVerify: true
19  namespaceSelector:
20    matchNames:
21    - kyverno
22  selector:
23    matchLabels:
24      app.kubernetes.io/instance: kyverno

Add the appropriate labels.

1kubectl label ns kyverno app.kubernetes.io/instance=kyverno
2kubectl label ns kyverno app.kubernetes.io/name=kyverno

Create the ServiceMonitor.

1kubectl apply -f service-monitor.yaml

Restart Deployments and StatefulSets in the monitoring Namespace.

1kubectl rollout restart deploy,sts -n monitoring

Check services in the monitoring Namespace.

1kubectl get svc -n monitoring
2
3NAME                                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
4monitoring-kube-prometheus-prometheus     ClusterIP   10.96.238.189   <none>        9090/TCP,8080/TCP            4h16m

Port forward the monitoring-kube-prometheus-prometheus Service to a local port.

1kubectl port-forward svc/monitoring-kube-prometheus-prometheus 81:9090 -n monitoring
2
3Forwarding from 127.0.0.1:81 -> 9090
4Forwarding from [::1]:81 -> 9090

Similarly, port forward the monitoring-grafana Service to another local port.

1kubectl get svc -n monitoring
2
3NAME                                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
4monitoring-grafana                        ClusterIP   10.96.188.20    <none>        80/TCP                       4h19m
5
6kubectl port-forward svc/monitoring-grafana -n monitoring 82:3000
7
8Forwarding from 127.0.0.1:82 -> 3000
9Forwarding from [::1]:82 -> 3000

Go to Prometheus on port 9090 and check status -> Targets -> Filter for kyverno (to see if metrics are getting scraped)

Go to Grafana on port 3000 -> Dashboards -> New -> import -> Upload file that you get from running the below command -> Data type = Prometheus -> import

1curl https://raw.githubusercontent.com/kyverno/grafana-dashboard/master/grafana/dashboard.json -o kyverno-dashboard.json
